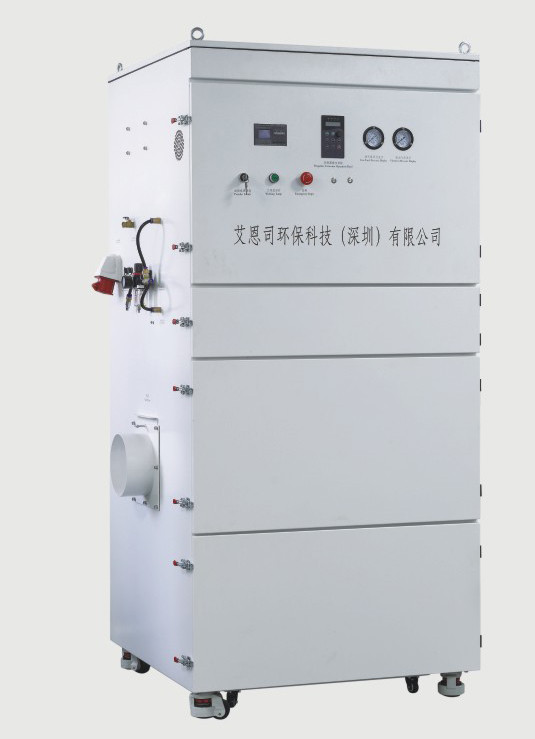

石墨吸尘机

GRAPHITE VACUUM CLEANER

产品简介 Product introduction

含尘气体进由进风道各入口阀进入各单元箱体，在箱体导流系统的引导下，粉尘分离后直接落入集屑车、其余粉尘随气流进入下箱体过滤区，过滤后的洁净气体透过滤芯，经上箱体、出风道排出，达标排放。广泛应用于车床、磨床、铣床、砂轮机、抛光机等制造业产生粉尘的机械设备。

The dust-containing gas enters each unit box through the inlet valves of the inlet duct. Under the guidance of the tank diversion system, the dust directly separates into the chip collecting truck after separation, and the remaining dust enters the lower tank filtering zone with the airflow, and after filtering The clean gas passes through the filter core and is discharged through the upper tank and the outlet duct to discharge the standard. Widely used in lathes, grinding machines, milling machines, grinders,polishing machines and other manufacturing machinery to produce dust.

产品简介 Product introduction

1.独立的 PLC 控制系统，全智能程序化控制。7 寸液晶显示屏，触 摸、 对话式操作。

2.根据粉尘量，自行设定清尘时间，到时系统会自动报警，荧幕 显示要进行清除积尘。也可以外接于机床的控制系统，吸尘機的所有报警内容，均可以在机床的数控系统上显示。

3.进口滤筒加覆膜处理，过滤精度高达 0.1 微米（纳米级）。 这是一般吸尘机，所“望尘莫及”的。

4. 储气罐选用专业且有资质的厂商提供，每台均经过严格测试变频节能功能：可根据加工时粉尘量，进行涡轮转速调节（一般机 床机床在精加工时，粉尘量小，吸尘机滿负荷运转，就很浪费电），这 时只需操作面板上调整即可。 远程控制功能：电源可接于机床上，设定主轴转动

时吸尘机启动， 主轴停止，吸尘机停止工作（也可随机床启动、停止，即吸尘机启动 和停止同步）。

5.积尘车可套布袋，处理粉尘变得更方便和无污染。新型脚轮，防震效果提高了 30%，运输中的防滑性提高了70%。升降变得更加容易。

Product introduction

1. Independent PLC control system, fully intelligent program control. 7-inch LCD display, touch, dialogue operation.

2. According to the amount of dust, set the dust cleaning time by yourself. When the system is ready, the system will automatically alarm and the screen will display the dust. It can also be connected to the control system of the machine tool. All alarm contents of the vacuum cleaner can be displayed on the numerical control system of the machine tool.

3. Imported filter cartridge and film treatment, the filtration precision is up to 0.1 micron (nanoscale). This is a general vacuum cleaner, which is “unpredictable”.

4. The gas storage tanks are provided by professional and qualified manufacturers, each of which has undergone rigorous testing of frequency conversion energy-saving functions: turbine speed adjustment can be carried out according to the amount of dust during processing (generally, the machine tool machine has a small amount of dust during the finishing process, vacuuming When the machine is running at full load, it is very wasteful. At this time, it is only necessary to adjust the panel. Remote control function: The

power supply can be connected to the machine. When the spindle rotates, the vacuum cleaner starts, the spindle stops, and the vacuum cleaner stops working. (The random bed can also be started and stopped, that is, the vacuum cleaner starts and stops synchronously.)

5. The dust-collecting car can be used to cover the bag, and it is more convenient and pollution-free to handle dust. The new casters have a 30% increase in shock resistance and a 70% increase in slip resistance during transport. Lifting is easier.
